The Arkansas Series

APPLIANCES

• Stainless Steel
• Range — 30" Self Clean Gas
• Range Hood — 30" with CA-247 Canyon Black
• Refrigerator — 21 CF with Ice & Water
• Dishwasher — Standard
• Microwave — Built-in with Trim ring.
• Water Heater — 40 Gallon Electric
• Water Heater Drain Pan — 22" Plastic (Electric ONLY)
• Washer/Electric Dryer Prep — Standard

AXLES

• Brake/Idler-Underslung — 99 1/2" Recycle/Monoleaf
• Tires (with New Rims) - New 14-Ply Low Profile
• Brake Wire — 14/2 Brake Wire

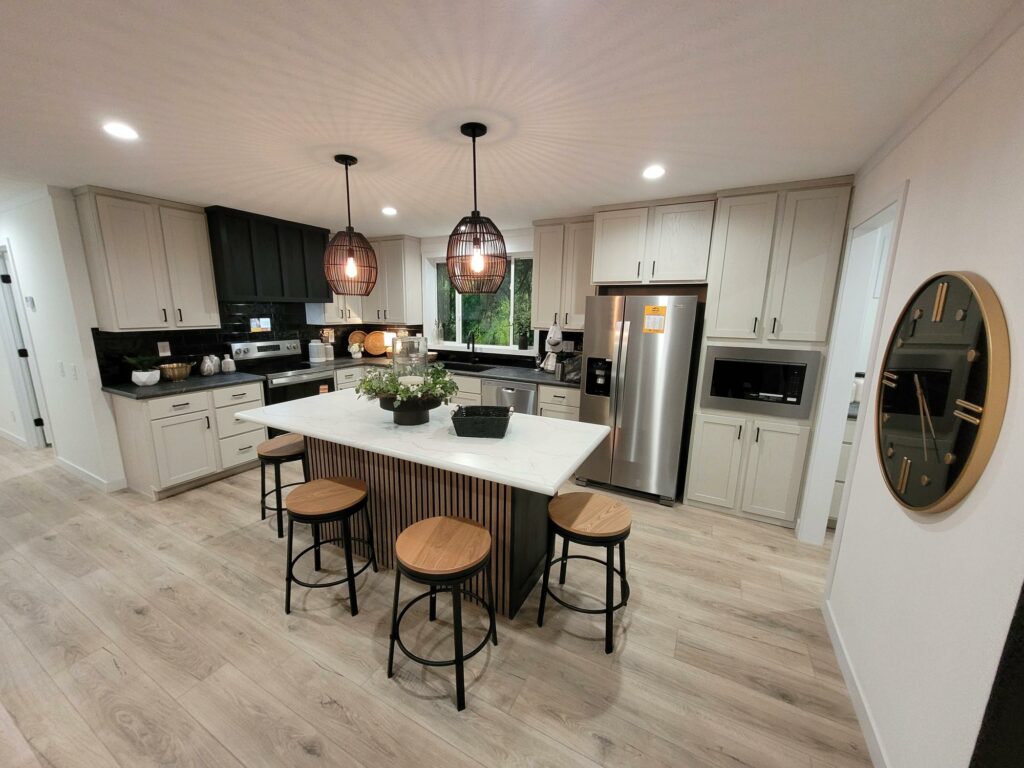

CABINETS

• Hardwood
• Kitchen Overheads — 40"
• Cabinet Over Refrigerator — Standard
• Cabinet Over Range — CA-247
• Drawer over Door Assembly — Standard
• Drawer Bank-Kitchen — 1 Standard
• Interior — Smooth Birch
• Center Shelf in Base Cabinets — Standard
• Center Overhead Shelving — Adjustable

CABINET DOORS

• Hardwood
• Base/Overhead Doors — Flat Panel Square
• Hutch Doors with Glass Inserts — Clear-Per Print
• Door Hinges — Hidden Hinge-Soft Close
• Drawer Guides — Soft-Close

MISC. CABINETRY

• Hardwood
• Electric Panel Door — Optional
• Countertop — Laminate
• Backsplash Kitchen — Tile Full-wall to Overheads
• Backsplash Rest of Home — Tile One Row.
• Edging — Cresent Edged
• Closet Shelf — Wire with 4 in Pantry & 3 in Linen
• Shirt & Skirt Shelving — Per Print
• Shelf Over Washer/Dryer — Standard
• Bath 2 Countertops — Laminate

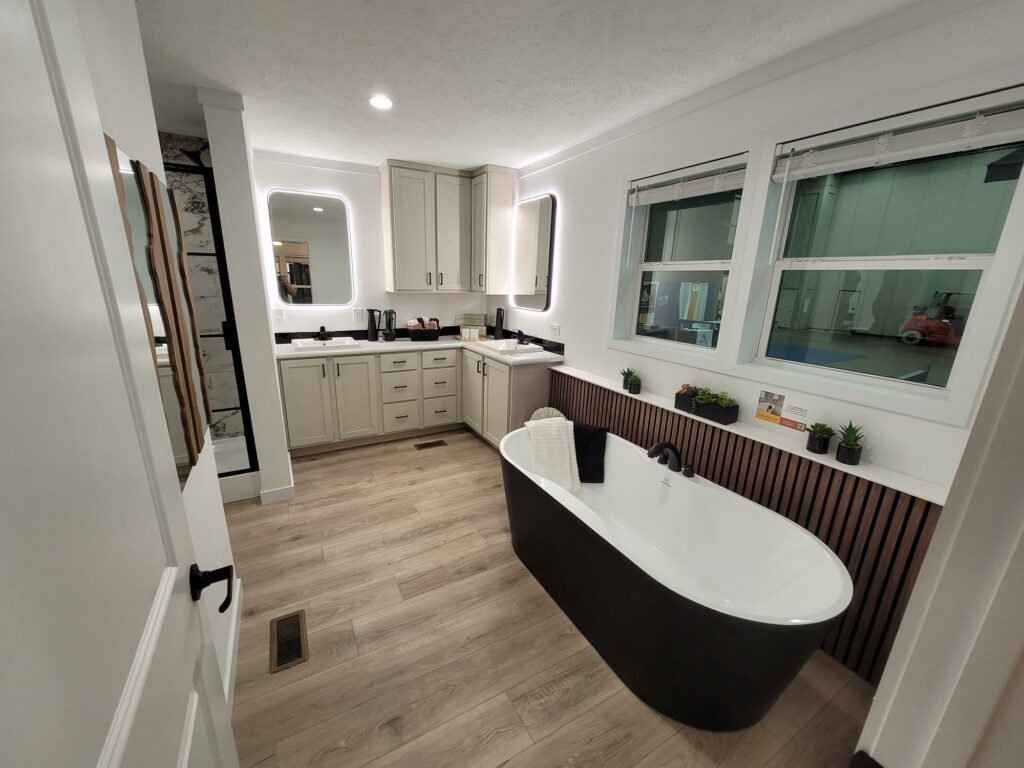

• Master Bath — Box Cabinet
• W/H Access — CE-2301 Per Print
• Entertainment Center — STD

CLOSE-UP

• Shipper Walls — As required
• Casle Close UP — Standard

EXTERIOR DOORS

• Front Door — 38"x82" 3-lite Top
• Front Door — Black upgrade Handle.
• Front Door — Black Lineal Around Door

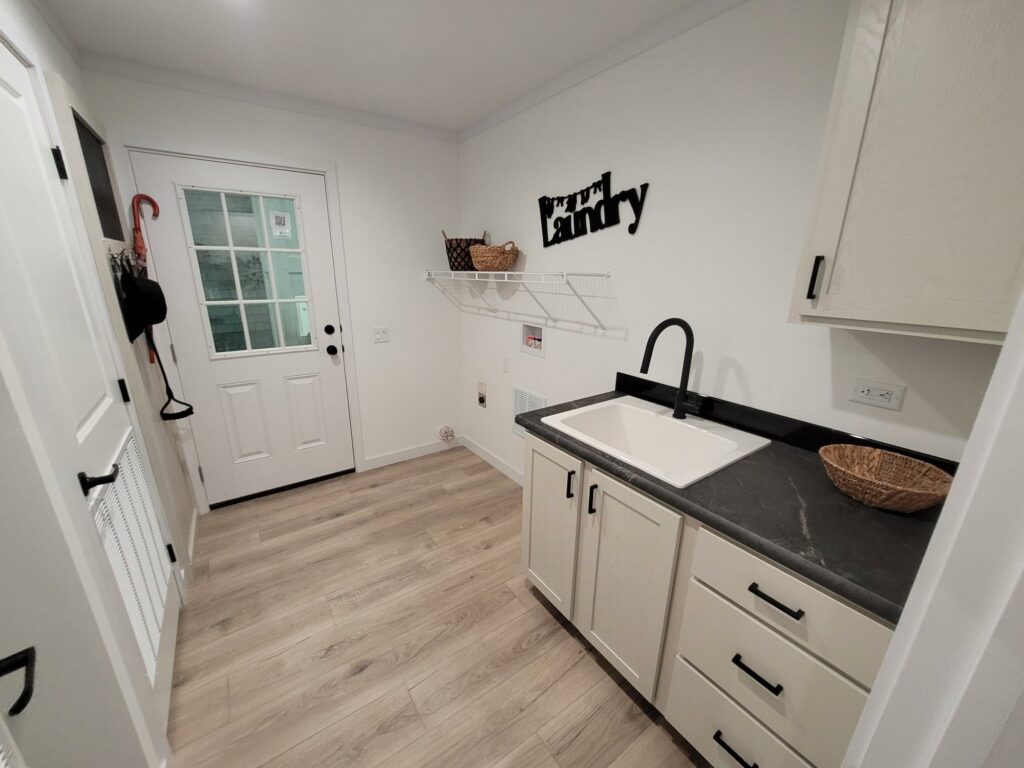

• Rear Door — 38"x82" 9-Lite
• Deadbolts – Included with Both Doors

DRAPES/DÉCOR

• No Drapes/Valances
• Mini Blinds — 2" Throughout

ELECTRICAL

• Service Panel — 100 AMP 12/20 Box
• Breaker Box Lock Device — Standard
• Interior Switches — SCD Single Switch
• Interior Receptacle — SCD Single Receptacle
• Crossover Connectors — 2 Conductor Connect
• Exterior Receptacle-Non GFI — 1-Below Floor
• Exterior Receptacle-GFI — 1-Sidewall
• Dryer Receptacleacle-240V — Standard
• Bath Exhaust Fan — Non-Lighted
• GFI Receptacle — Bath, Kitchen
• CO Detector — STD per Print

EXTERIOR WALLS

• Sidewall Height — 96"
• Stud Spacing — 16" o.c.
• Studs & Backers — 2x6x93"
• Top/Bottom Plates — 2x/1x #3 SPF
• Exterior Wall Insulation — R19-Kraft Batt
• Adhesive — F6400LV
• Wall Covering — Finished Drywall

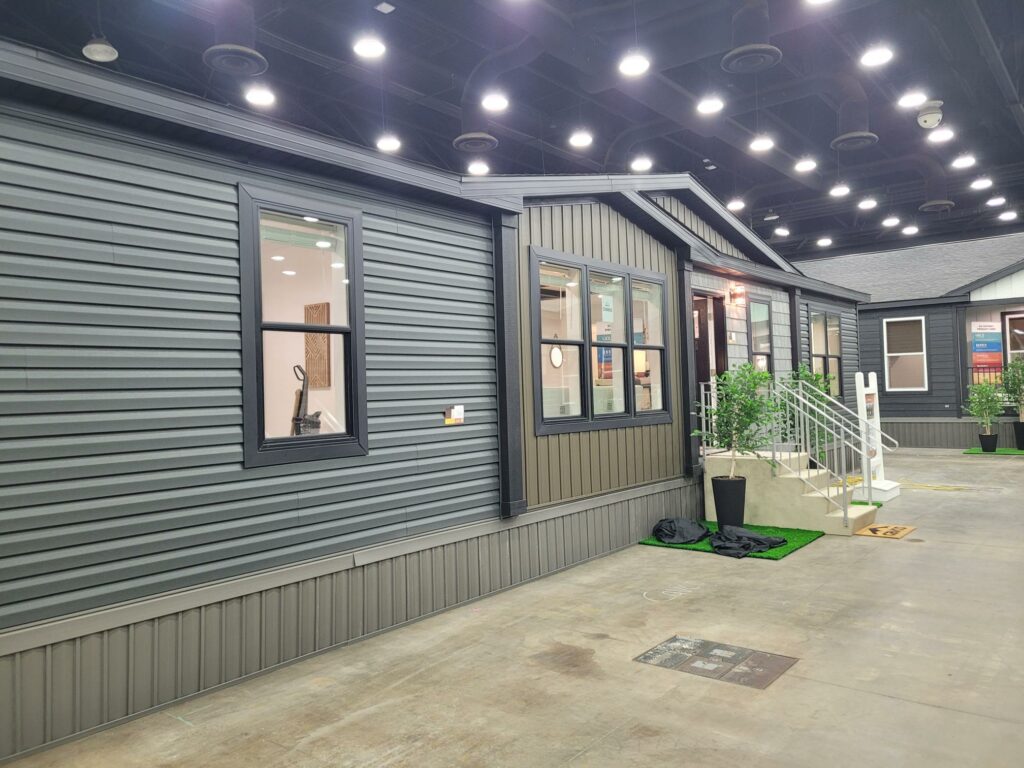

EXTERIOR TREATMENT

• Sheathing — OSB
• House wrap — STD
• Siding — Double 4" Dutch Lap
• Outside Corner — 10' Per Siding Color
• Crown Molding — Soffit Receiver — Black
• Soffit — Fully Vented Black
• Fascia — Metal Fascia
• Window Lineals — Hitch-end Door side

FLOOR

• Joist Spacing — 16" o.c.
• Joists — 2x6 #3 (24', 28'), 2x6 #2 (32')
• Side Rails — 2x6 #3 (24', 28'), 2x6 #2 (32')
• Bottom Board — Shepweave ll
• Floor Insulation (Energy Star) - R-22(2 Layers R-11 6' Blanket)
• Decking — 5/8" 4'x8' T&G OSB

FLOOR COVERING

• Carpet Pad — 3/8", 5# Pad
• Carpet Bar — Standard
• Tack Strip — Throughout Carpet Areas

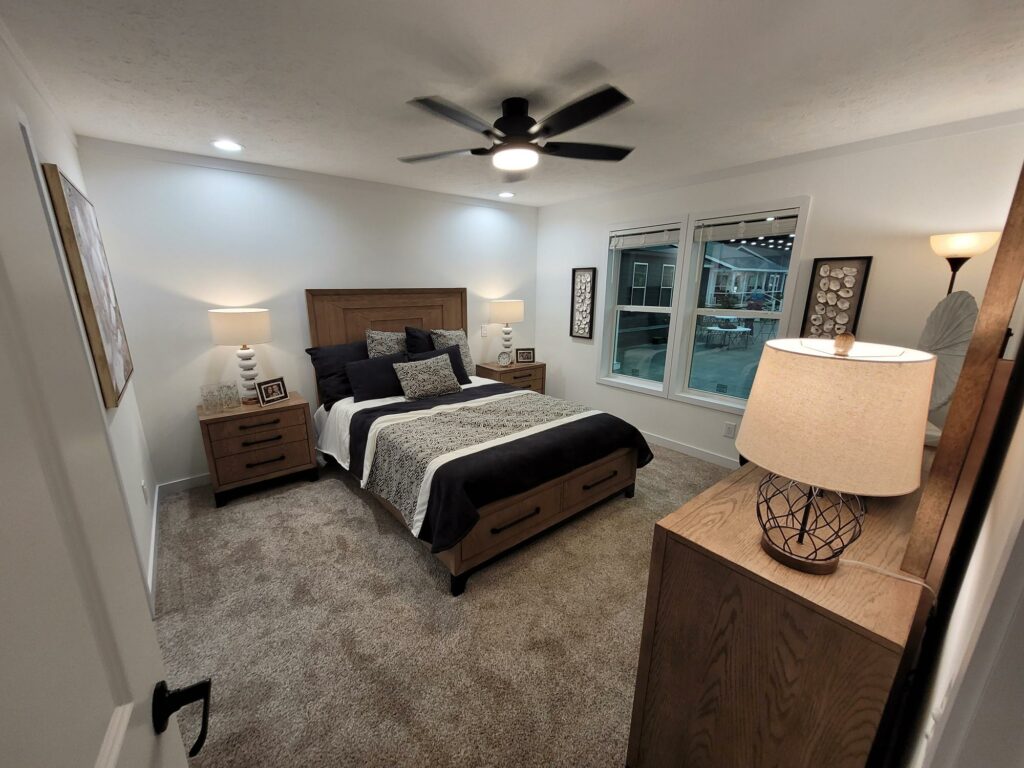

• Carpet Placement — Bedrooms
• Linoleum Placement — Thru-out except Bedrooms
• Linoleum Seam Bar — Standard
